Description

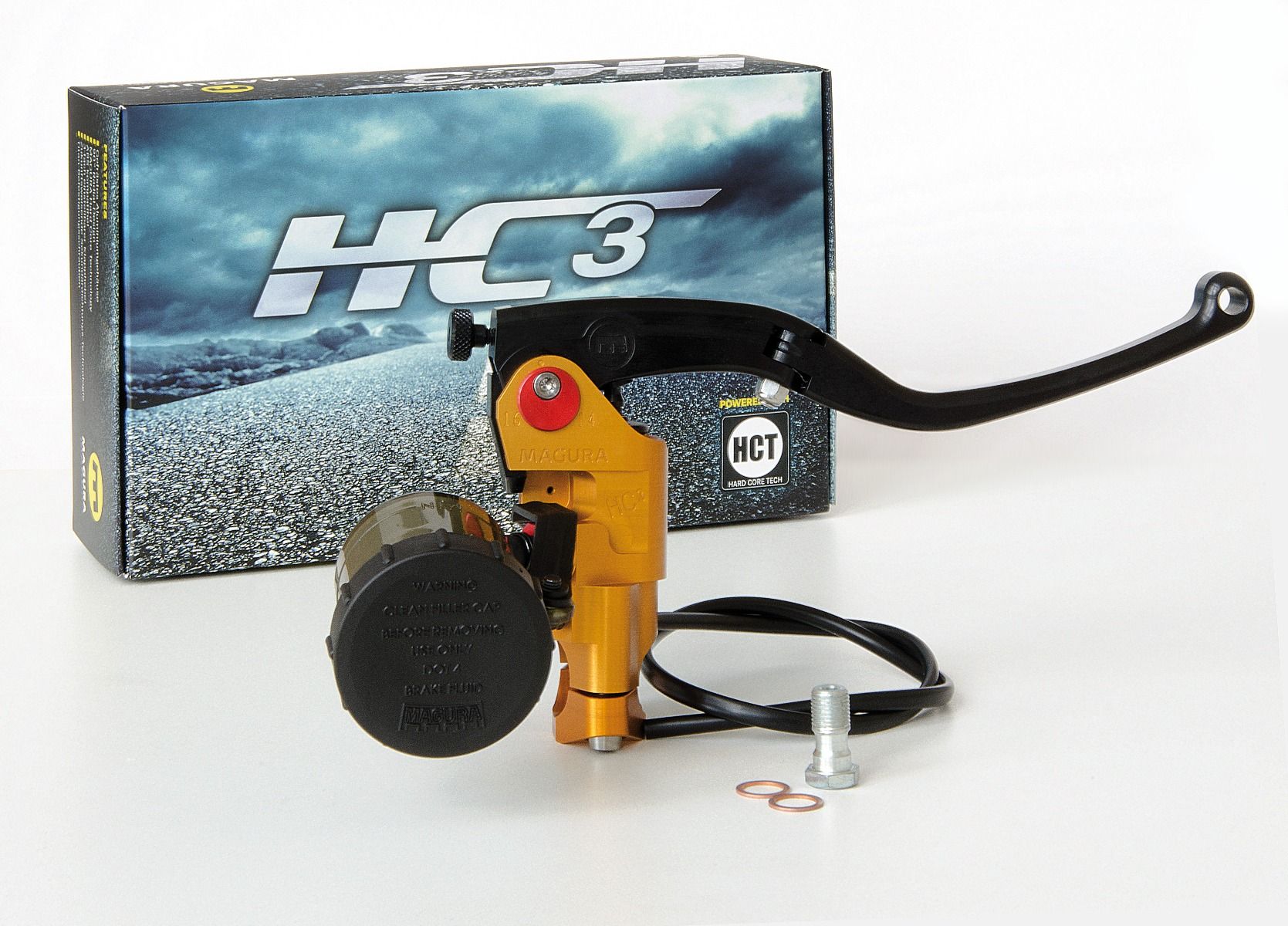

MAGURA Radial Brake Master Cylinder – Latest Generation with HCT (Hard Core Technology)

Experience the latest MAGURA Radial Brake Master Cylinder, engineered with HCT (Hard Core Technology) for unparalleled braking performance.

Key Features:

• Precision CNC Machining: Crafted from a single piece of high-end aerospace aluminum, ensuring exceptional strength and durability.

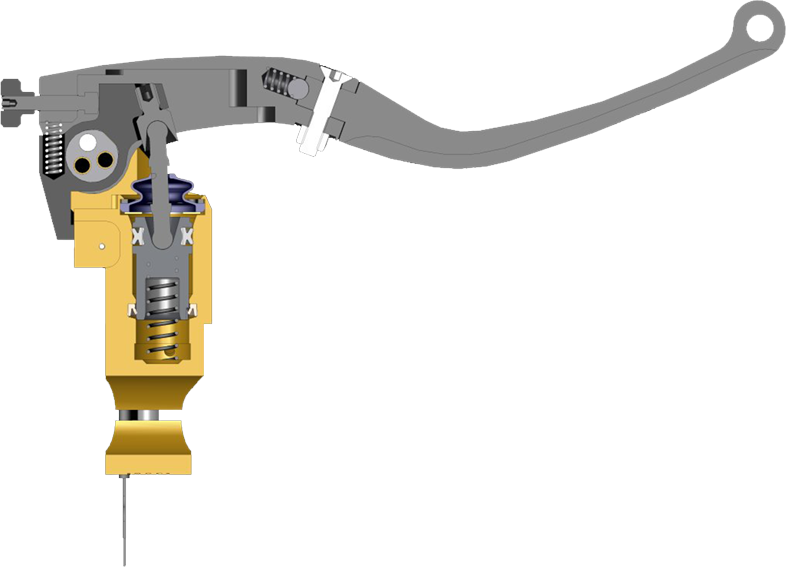

• HCT (Hard Core Technology): MAGURA’s patented system reduces internal friction, improving lever feel and responsiveness. The slotted piston technology mimics a multi-primary port master, delivering rapid pressure balance during ABS kickback.
• 90° Full Radial Design: The pushrod and cylinder are positioned at a right angle to the handlebar, decreasing friction and providing a more direct lever feel for improved braking control.
• Full ABS Compatibility: Designed for seamless integration with all ABS systems, ensuring no performance loss due to pressure compensation or ABS kickback.

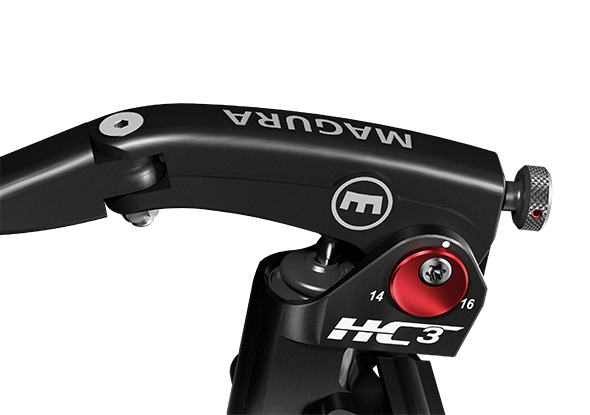

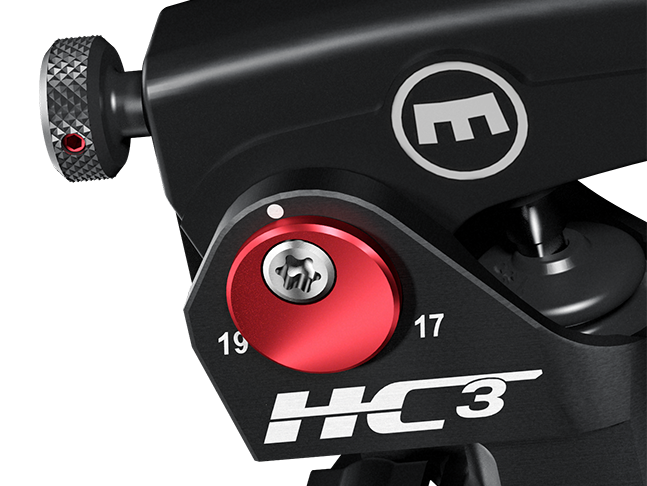

• 3-Way Lever Ratio Adjustment: The master cylinder features an adjustable pivot point, allowing fine-tuning to mimic the effect of a 1mm smaller or larger piston size for an optimal hydraulic ratio.
• Folding Lever Blade: Equipped with crash protection, the lever folds up in case of an accident, enhancing the chance of riding home.
• Advanced Secondary Seal Technology: The X-Ring rear piston seal is designed to prevent air intrusion, solving common issues seen in high-speed race bikes.
• External Reservoir with Mounting Bracket: Includes a separate brake fluid reservoir for easy installation and maintenance.
• Titanium Retaining Bolts: High-grade titanium bolts provide strength, durability, and weight savings.
• Integrated Brake Light Switch: Comes pre-installed with a brake or clutch switch and cable for added convenience.
• TÜV Approved & German Engineering: Precision-engineered in Germany with official TÜV certification for reliability and quality.
• Banjo Bolt & Crush Washers Included: Ready for installation out of the box.
• For Use with Mineral Oil Only!

Available Piston Diameters:

• Radial Brake:

  • 12mm (adjustable from 11 to 13mm)
  • 15mm (adjustable from 14 to 16mm)
  • 18mm (adjustable from 17 to 19mm)

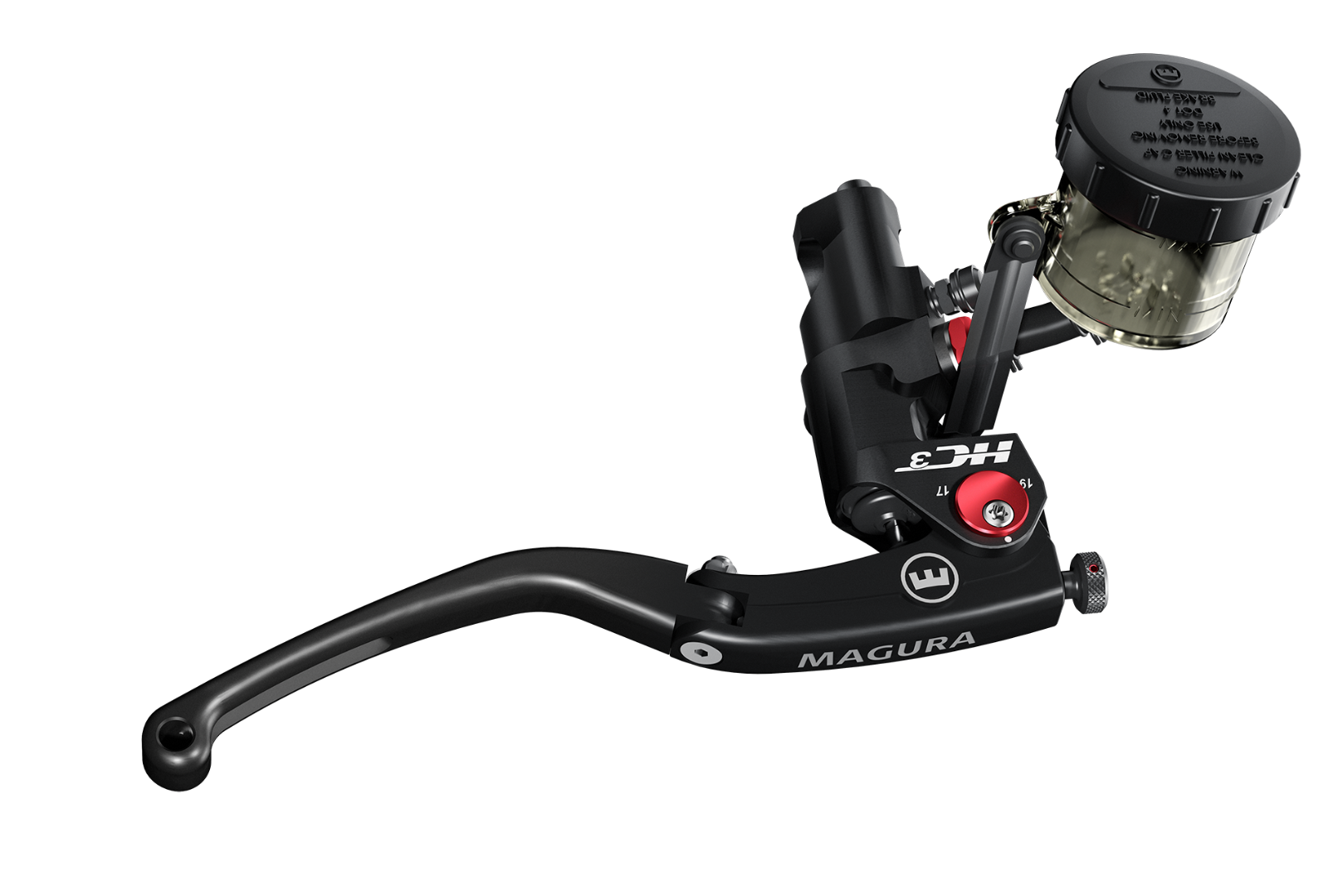

• Radial Clutch:

  • 12mm (adjustable from 11 to 13mm)
  • 15mm (adjustable from 14 to 16mm)

Available with long and sport levers.

Optional Accessories:

• Short fold-up lever
• Mirror mount clamp
• Remote lever adjuster
• Double banjo bolt for dual-line setup

Color: Black
