Description

Parking position display and Ping! for help locating the vehicle.
LIN bus connection for connecting to compatible motogadget products at a later date.
Technical Requirements

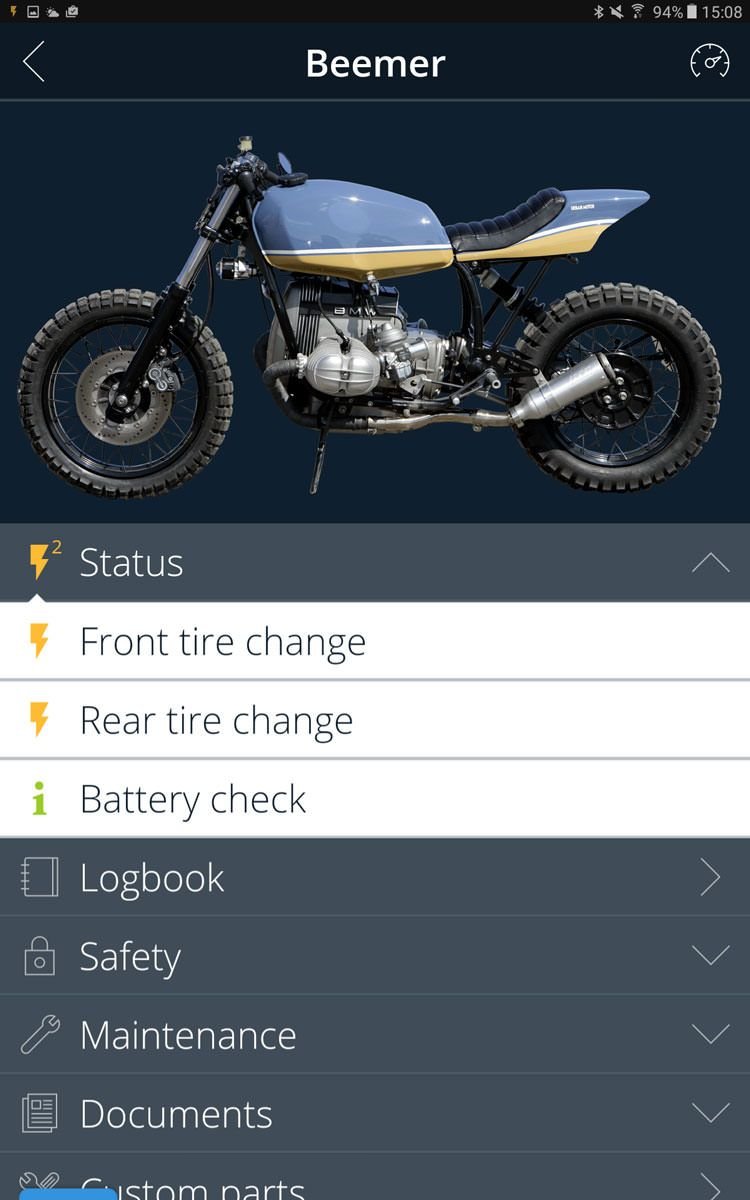

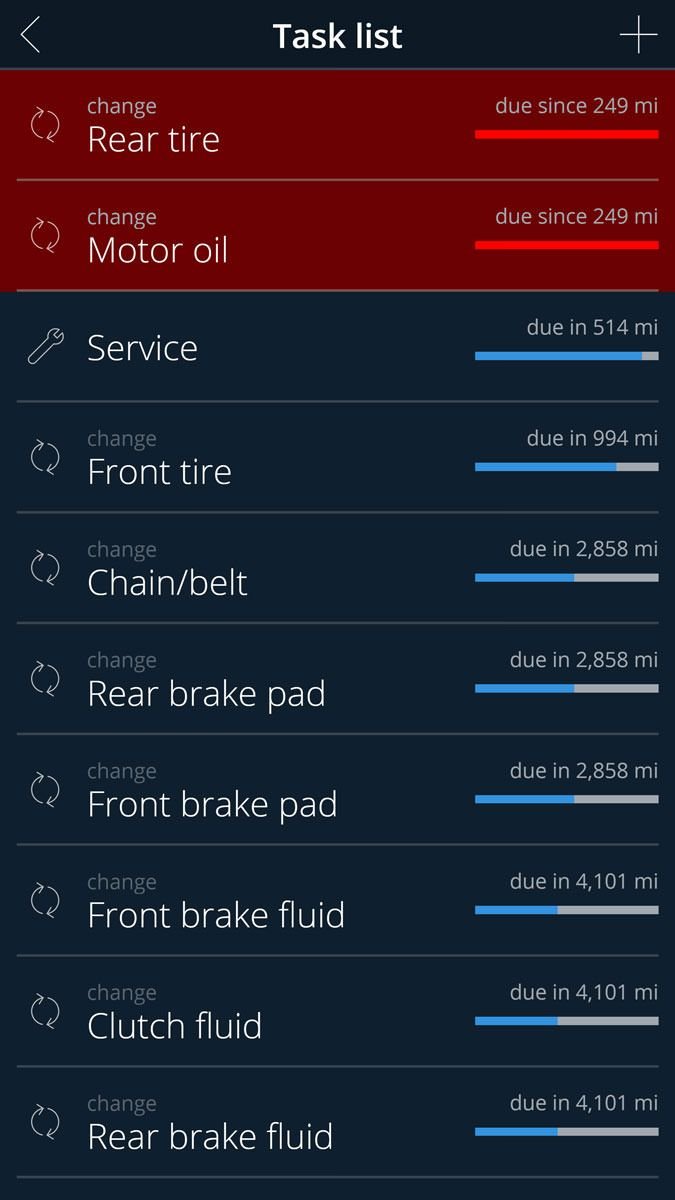

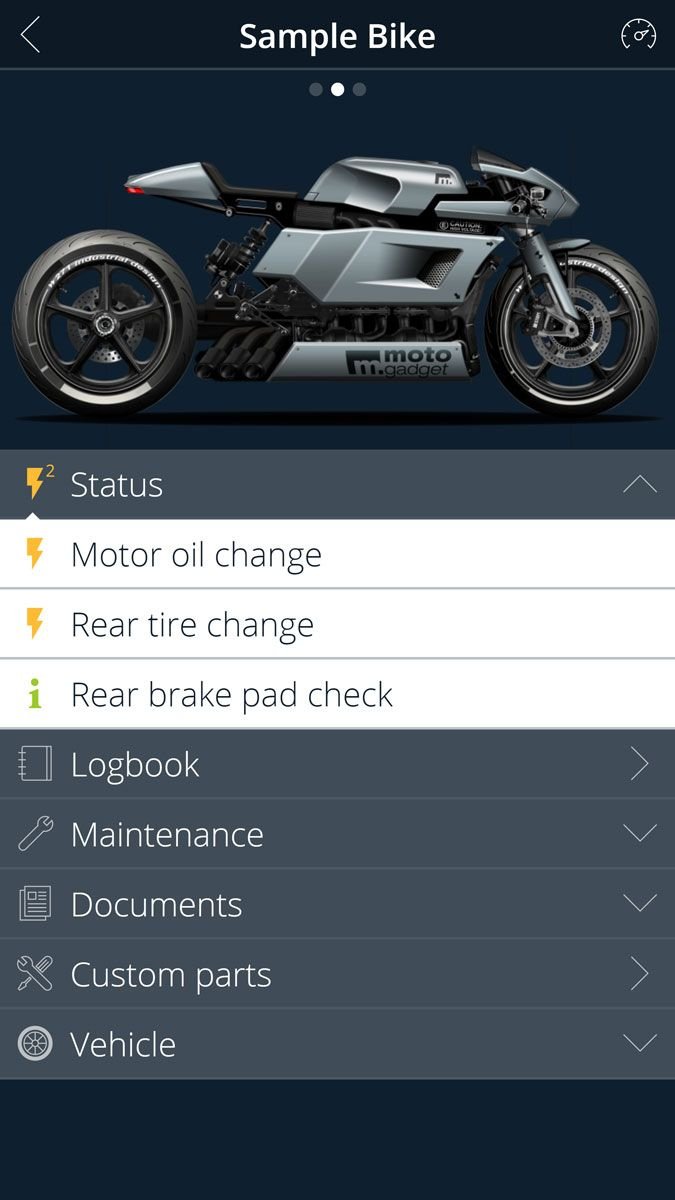

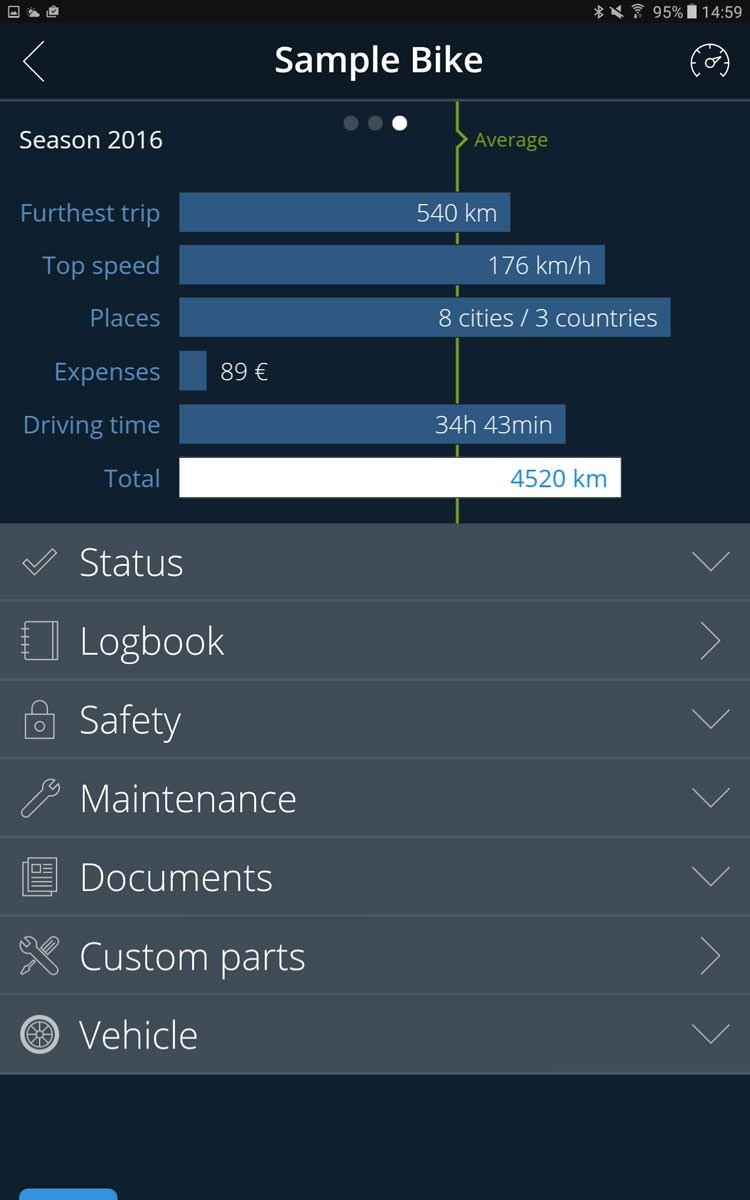

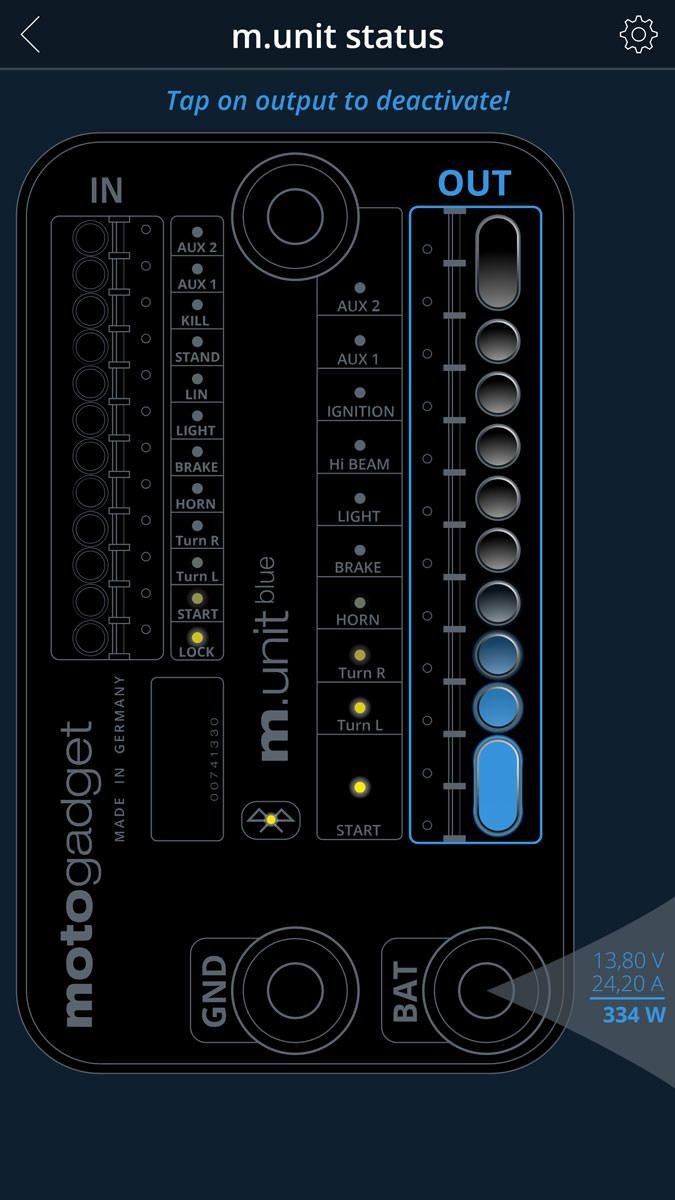

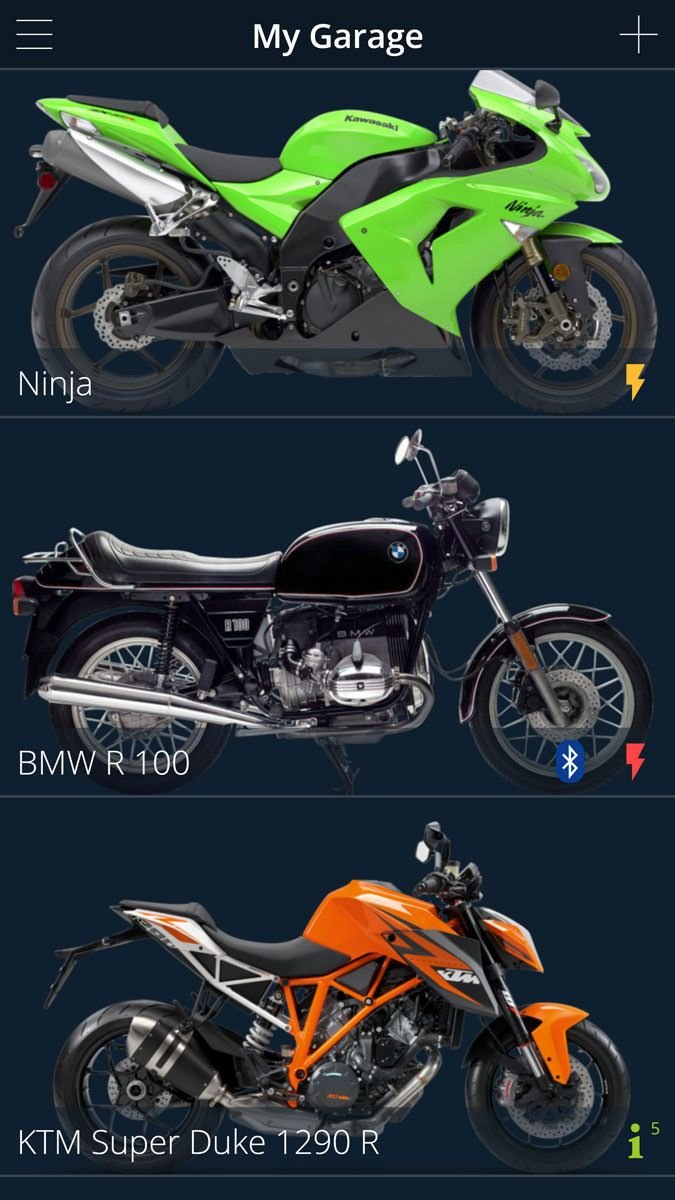

The mo.ride App is available for Android and for iOS .

iPhone from iOS 10 / Android from 8.0 (compatibility may be limited due to manufacturer)

Further information on the App can be found at moride.de or in Google Play and iTunes.

Scope of Delivery

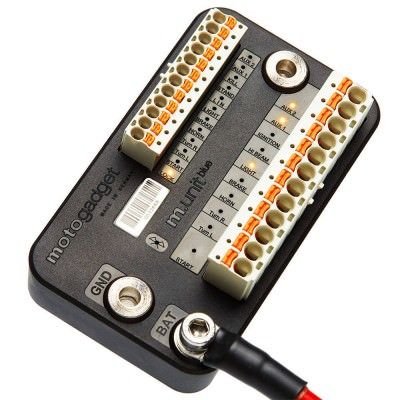

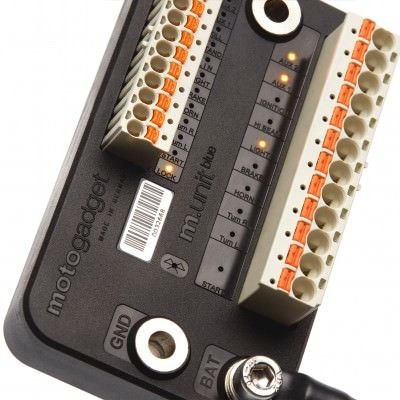

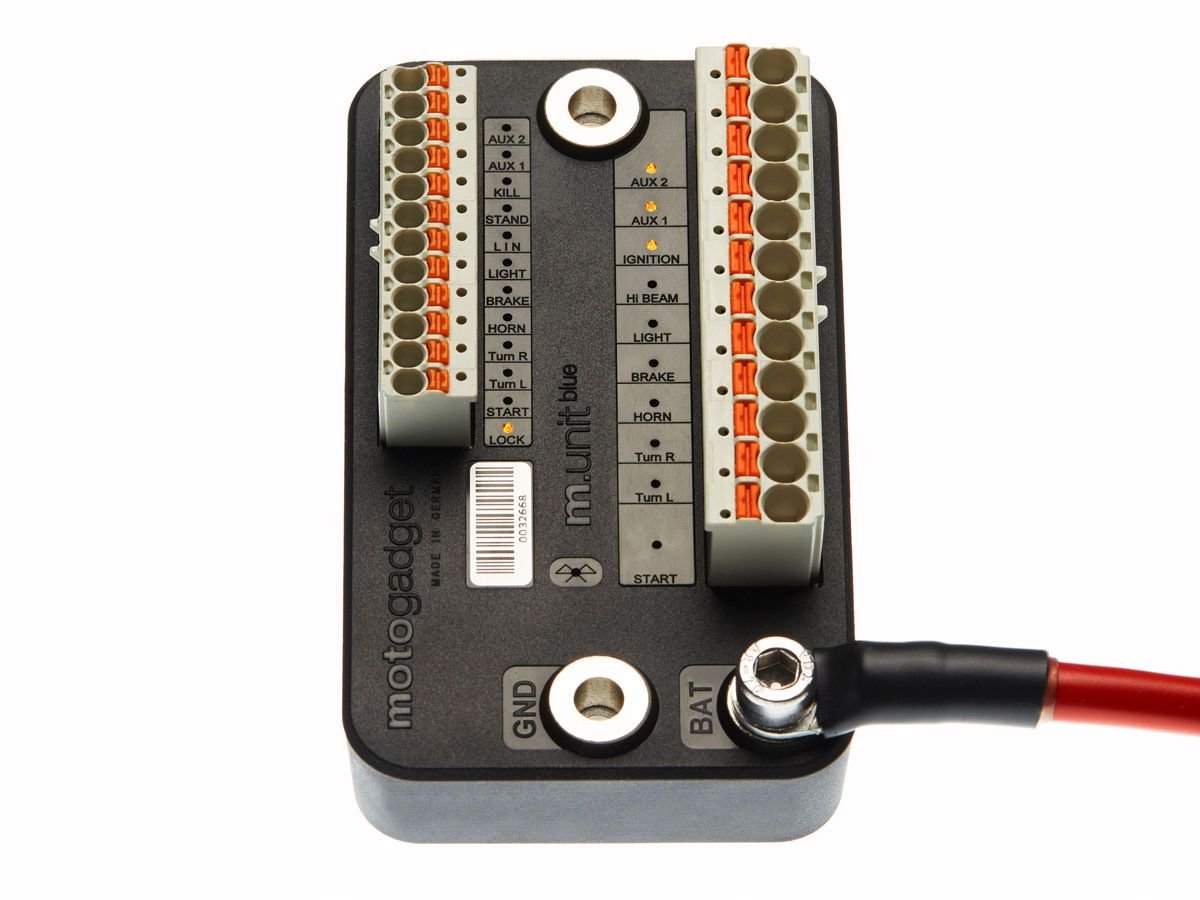

mo.unit blue
2 cable eyes
1 x M5 stainless steel bolt
2 x M5 stainless steel bolts with hex nuts
1 x speed sensor with 2 magnets
Detailed installation and operating instructions
Dimensions and specifications

L/W/H: 90 x 53 x 30 mm (3.5″ x 2.1″ x 1.2″)
Weight: approx. 180 g
Mounting: 2 x M5 screws, stainless steel (mounting and ground terminal), 1 x M5 screw-on terminal for battery positive
Operating voltage: 6V – 20V
Operating temperature: -20 °C… +80 °C

Inputs:

1 x input (+12V switched) for ignition lock or m.Lock
11 x control pilot inputs (minus/ground, switched) for left turn signal, right turn signal, low beam/high beam, starter, horn, brake light, kill switch, kick stand switch, LIN-Bus, AUX1 and AUX2

Outputs:

10 x Outputs (+12V) for left turn signal, right turn signal, Lo-beam, Hi-beam, starter, horn, brake light, ignition, AUX1 and AUX2
