Description

Manufacturer: MLab
Country of origin: Ukraine

Mechanical characteristics

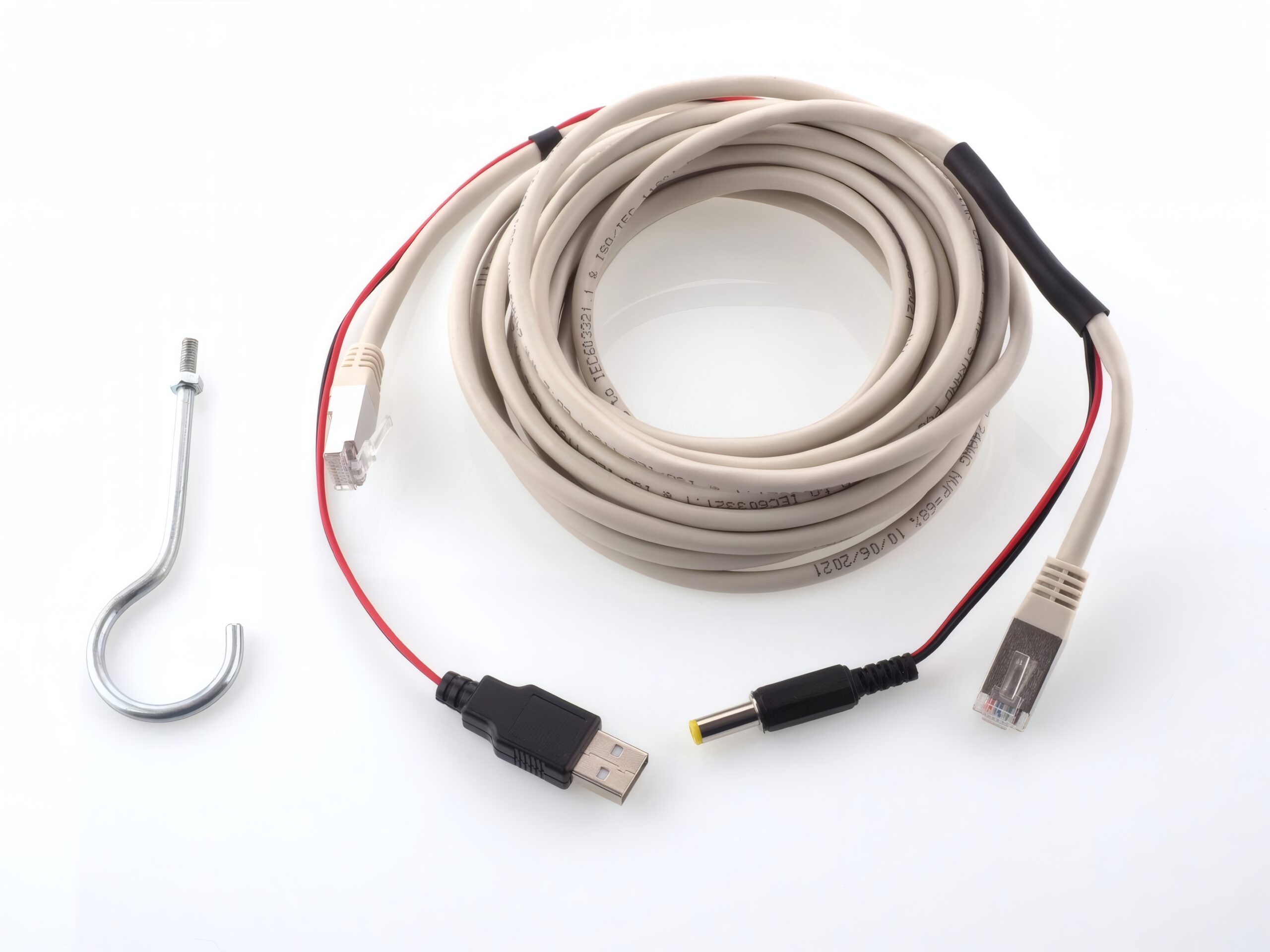

Total Cable Length: 5 м

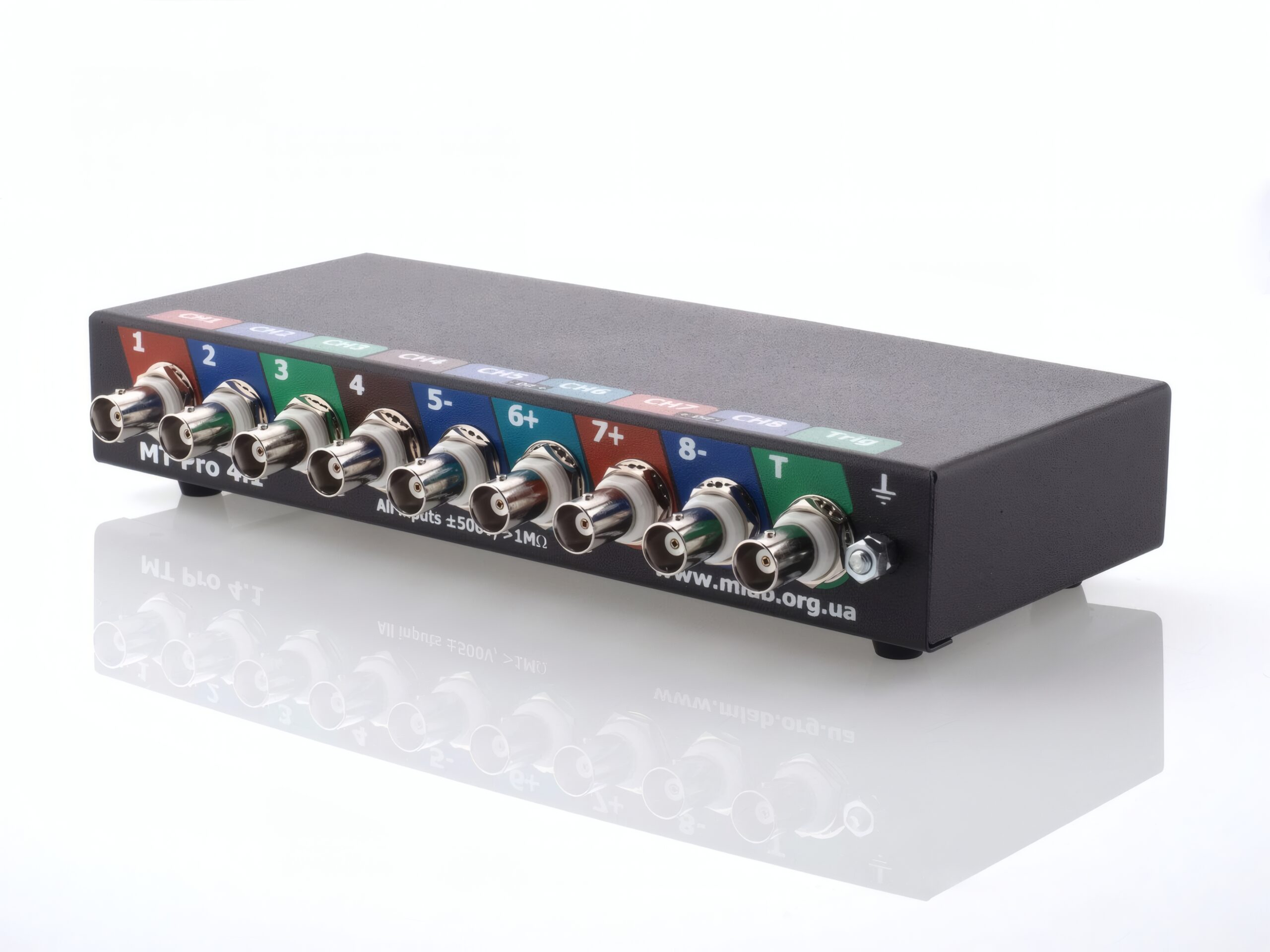

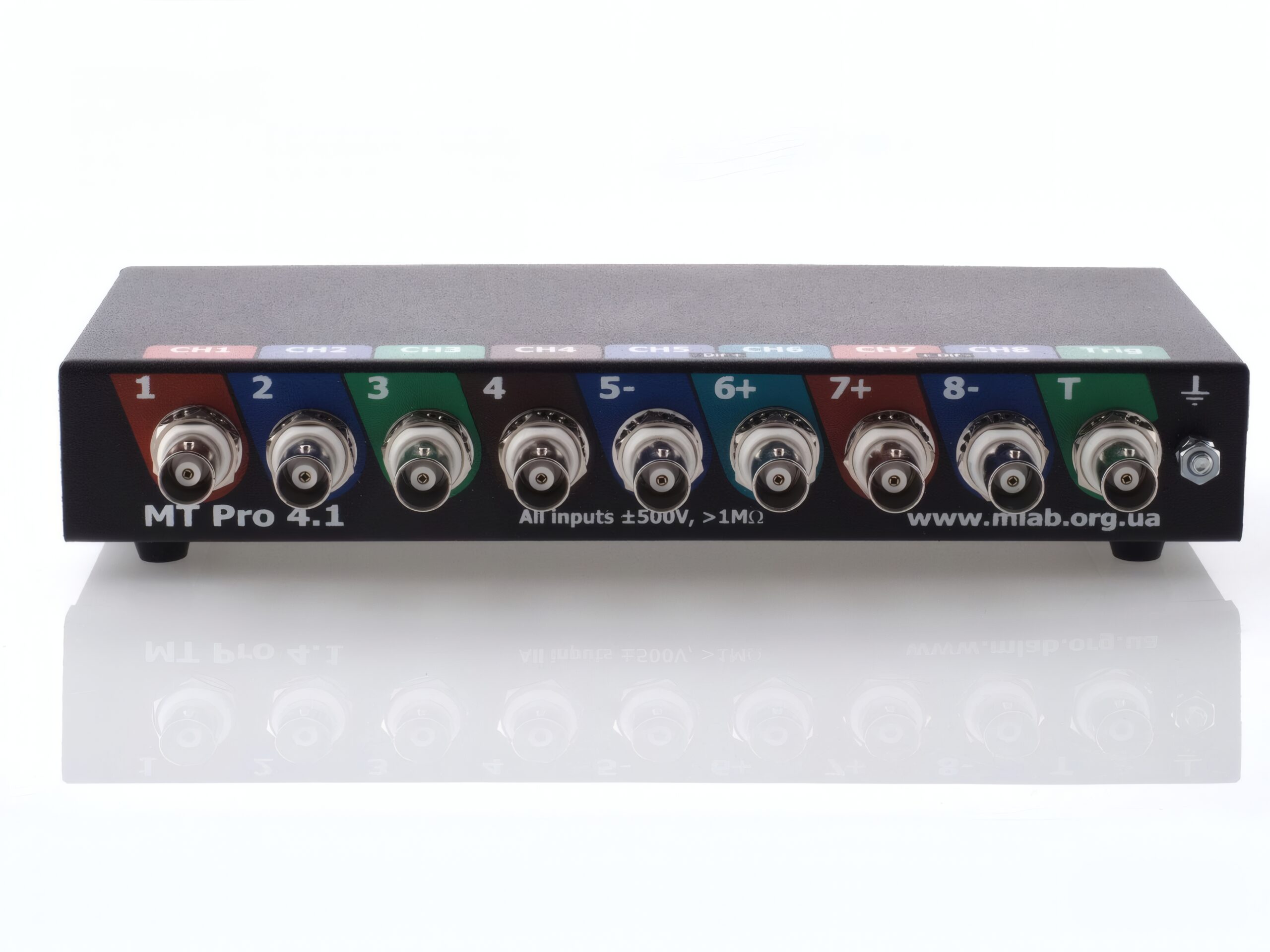

Measuring Channel Input Connector: BNC
Housing Material: steel
Plating powder coating
Weight: 750 g

Electrical characteristics
Analog Channels Bandwidth: 1 to 4 channels – 250 kHz, 5 to 8 channels – 1 MHz
Maximum Sampling Rate: 6 MHz (depending on how many analog channels are on)
ADC Resolution: 12 bit
Channel’s Input Resistance: 1 MOhm minimum
Insulation Resistance: 1000 MOhm minimum
Supply Voltage: 5 ± 0.5 V, powered by USB port (galvanic isolation)
Sensitivity: 12 hardware subbands with a ±0.1 V to ±500 V range, additional amplifiers x1, x2, x5, x10 (channels 6 and 8)
Accuracy: ±1%
Supply Current: 400 mA maximum

Performance characteristics
Operating System: Windows XP / Vista / 7 / 8 / 10 / 11

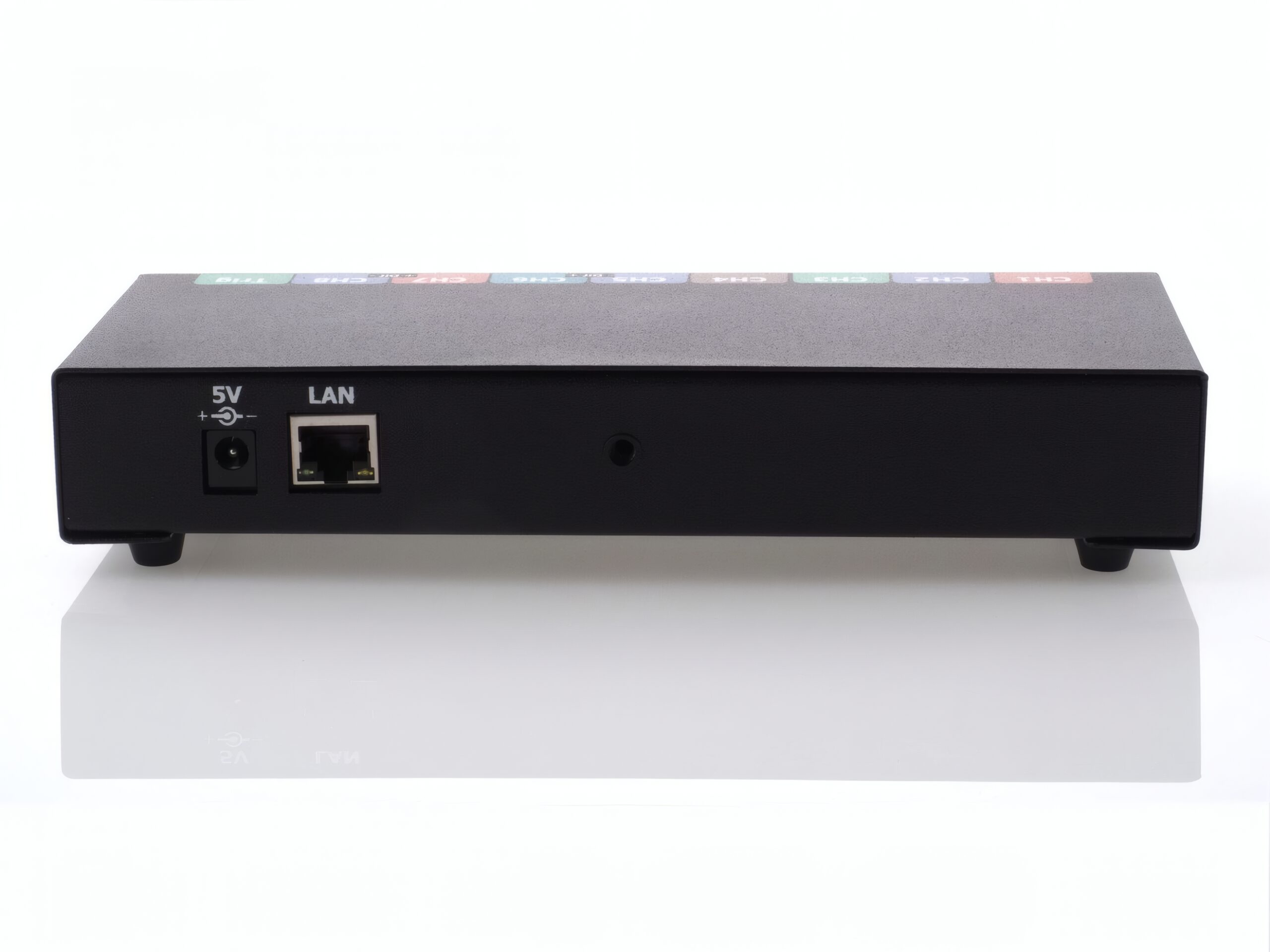

Data Connection Interface: Ethernet 100M

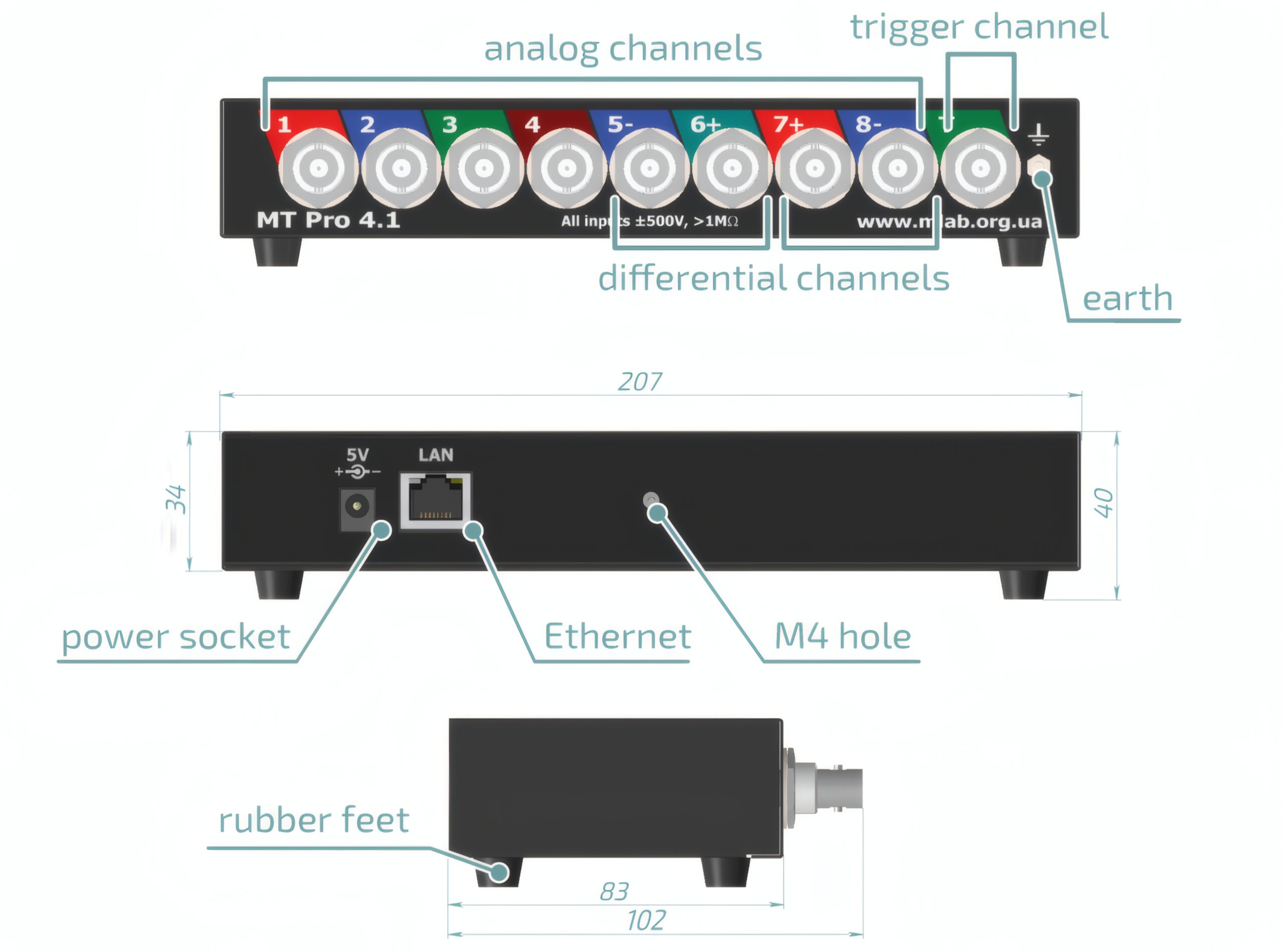

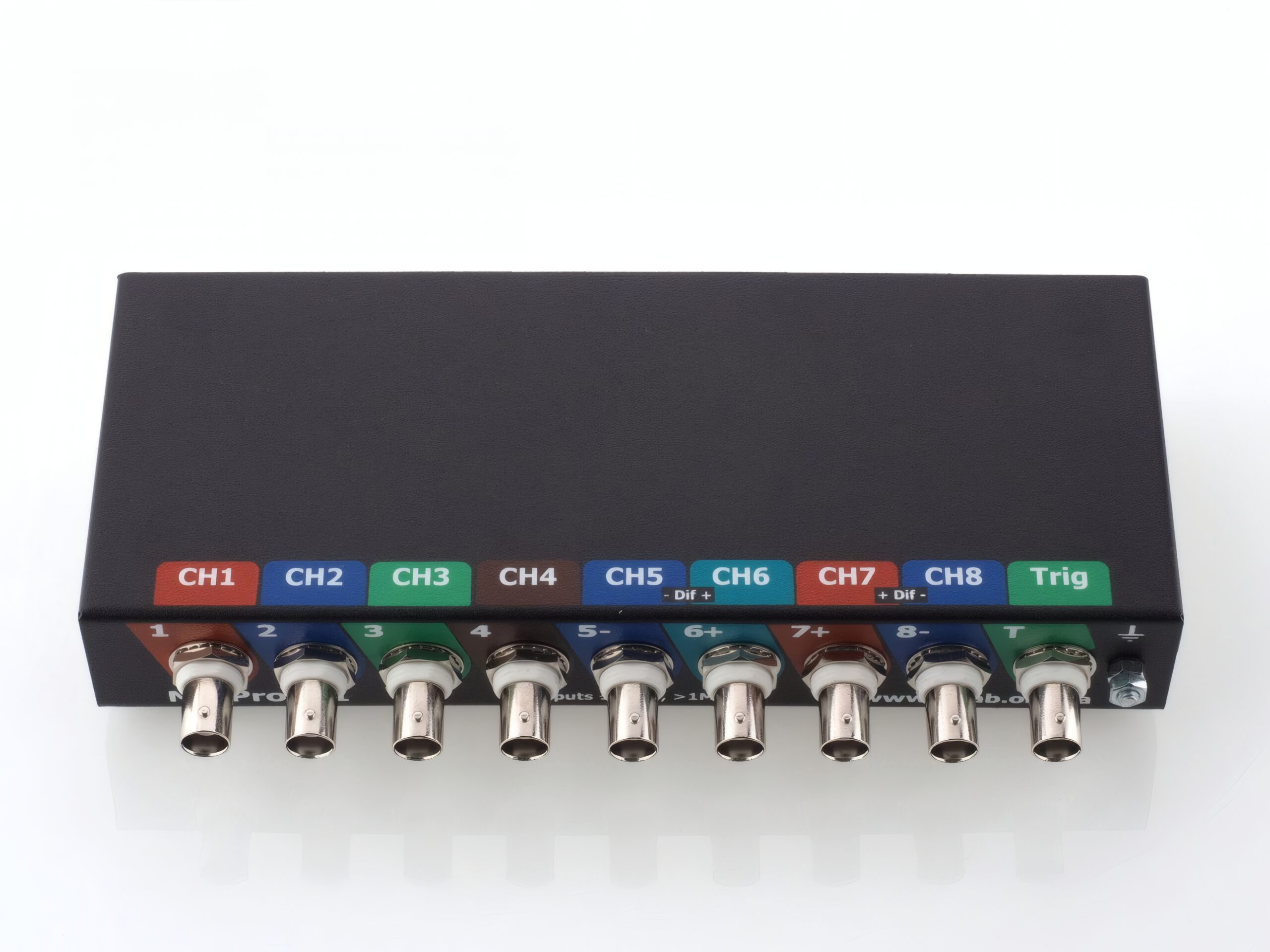

Number of Universal Channels: 8 analog channels, 1 synchronization channel (self-tuning)
Pseudo-Differential Channels: 2 pcs (channels 6-5, channels 7-8)
Operating Temperature Range: -20 … 80°C
